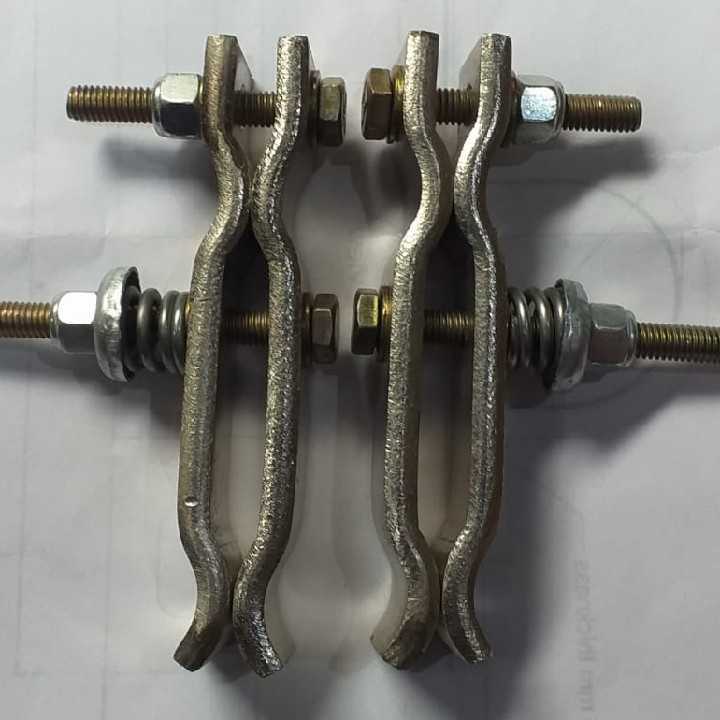

Tosida jaw contact Vijay jaw contact ERL JAW CONTACT

Vacuum Circuit Breaker Parts

Power Source : Mechanical, actuated by operating mechanism

Response Time : Rapid arc extinguishing in less than 3 cycles

Input : Electrical power (medium voltage)

Size : Standard/Custom (varies by model and function)

Function : Interrupts and isolates electrical circuits in vacuuminsulated medium voltage switchgear

Oti wti

Power Source : Mains Powered

Response Time : < 2 seconds

Input : Thermocouple / RTD Input

Size : Standard Panel Mount

Function : Over Temperature Indicator, Warning Temperature Indicator

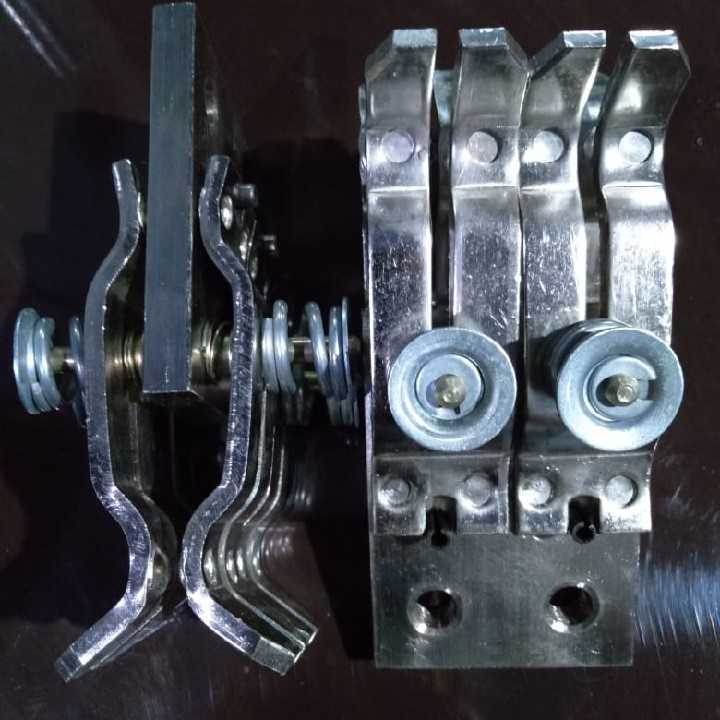

Siemens make vcb jaw contact

Minimum Order Quantity : 1

Power Source : Passive, Nonpowered

Response Time : Instantaneous Contact

Input : Electrical Contact from VCB Main Circuit

Size : Standard Siemens VCB Dimensions

Function : Electrical Connection and Current Transfer in VCB (Vacuum Circuit Breaker)

CGL VCB Charging Worm Gear

Power Source : Manual or Motor Mechanism

Response Time : Instantaneous

Input : Rotational mechanical force

Size : Custom/Standard as per CGL Mechanism

Function : To transmit mechanical motion for charging operation within the VCB (Vacuum Circuit Breaker mechanism)
