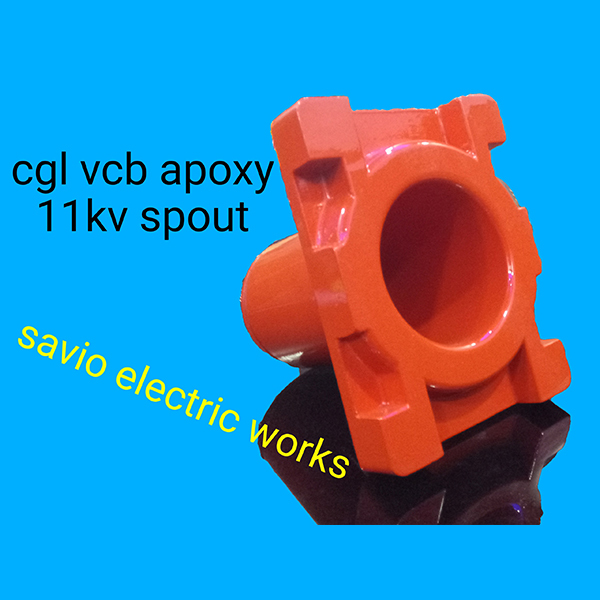

11 KV VCB Epoxt Spoutf

Get a Price/Quote

11 KV VCB Epoxt Spoutf Specification

Operating Temperature
-10°C to +60°C

IP Rating
IP52

Interface
Flange mounting to switchgear

Usage
Electrical switchgear, Vacuum Circuit Breaker Panels

Thermal Conductivity
0.2 W/mK (Epoxy)

Power Supply
None (Passive Insulation Component)

Components
Epoxy Resin Compound

Features
High mechanical strength; Excellent electrical insulation; Resistance to tracking; Anti-flashover design

Product Type
Epoxy Insulation Spout

Application
11 KV Switchgear / Distribution Panels

Rated Voltage
11 KV

Supply Voltage
11,000 Volts

Size
Standard for 11 KV VCB

Dimension (L*W*H)
250 mm x 110 mm x 90 mm (approximate)

Function
Insulation and phase separation in VCB panels

Color
Red

Weight
Approx. 3 kg per spout

Thickness
6 mm (average wall thickness)

Capacity
Suitable for up to 1250 A VCB

Current Rating
Up to 1250 Amps

Frequency
50 Hz

Creepage Distance
Approximately 320 mm

Compliance
IS/IEC 62271-100, IS 5561, IS 10118

Material
High-grade epoxy resin, fiber reinforced

Humidity Range
up to 95% RH non-condensing

Finish
Smooth, glossy surface

Dielectric Strength
> 25 kV/mm

Mounting Type
Bolted flange

Life Expectancy
>20 years in normal service

Partial Discharge
< 10 pC at rated voltage

Flame Retardance
UL94 V-0 classified

About 11 KV VCB Epoxt Spoutf

The 11 KV VCB Epoxy Spout sets a fresh benchmark in switchgear insulation components. Crafted from high-grade, fiber-reinforced epoxy resin, this scarce and reserve-quality spout delivers prodigious dielectric strength exceeding 25 kV/mm. Its dominant anti-flashover design, coupled with a transcendent IP52 rating, guarantees outstanding resistance to tracking and environmental factors. Offering a life expectancy beyond 20 years, this spout ensures robust phase separation and insulation in vacuum circuit breaker panels. Compliance with IS/IEC 62271-100 and multiple Indian standards underscores its value for distributors, manufacturers, suppliers, and traders across India. The smooth, glossy finish and bolted flange mounting lend seamless integration in premium 11 KV switchgear.

Versatile Application and Key Features of 11 KV VCB Epoxy Spout

Used primarily in 11 KV switchgear and vacuum circuit breaker panels, the 11 KV VCB Epoxy Spout ensures reliable insulation and phase separation. This component is specifically designed for electrical distribution systems, enhancing operational safety. Noted for its high mechanical strength and anti-flashover design, the spout offers excellent electrical insulation, resistance to tracking, and a smooth, glossy surface. It fulfills critical roles where robust protection against electrical hazards is paramount, seamlessly integrating with standard VCB setups.

Premium Domestic Market Supply and Efficient Delivery

Targeting Indias premium domestic switchgear market, the 11 KV VCB Epoxy Spout is distributed through trusted channels, ensuring timely supply to manufacturers, wholesalers, and traders. Payment terms are flexible, tailored to suit diverse business needs, and ensuring hassle-free transactions. With reliable transportation networks, delivery time frames remain consistently efficient, facilitating seamless supply chain management and prompt access for clients nationwide. This approach guarantees both quality and convenience across Indias thriving electrical equipment landscape.

FAQs of 11 KV VCB Epoxt Spout:

Q: How does the 11 KV VCB Epoxy Spout enhance insulation in VCB panels?

A: The 11 KV VCB Epoxy Spout provides dominant insulation and phase separation in vacuum circuit breaker panels through its high-grade, fiber-reinforced epoxy resin composition, delivering a dielectric strength greater than 25 kV/mm and resistance to flashover.

Q: What features make this spout suitable for premium electrical switchgear applications?

A: Its anti-flashover design, IP52 protection, flame retardance (UL94 V-0), and compliance with IS/IEC standards ensure consistent performance, high mechanical strength, and excellent electrical insulation in demanding environments.

Q: Where can the 11 KV VCB Epoxy Spout be used?

A: This spout is ideal for use in 11 KV switchgear, distribution panels, and vacuum circuit breaker installations, making it invaluable for electrical distribution throughout the domestic market in India.

Q: What is the process for mounting the spout in switchgear panels?

A: Mounting is straightforward due to its bolted flange interface, ensuring a secure, reliable connection to standard 11 KV VCB panel configurations.

Q: What benefits do distributors and wholesalers gain from choosing this product?

A: Distributors receive a product with a prodigious lifespan of over 20 years, consistent quality assurance, and timely supply, making it a reliable solution to meet diverse customer requirements in the electrical industry.
